4X Screw LINK PINS For ROLEX Watch Strap Bracelet Stainless Steel NEW Spare Part

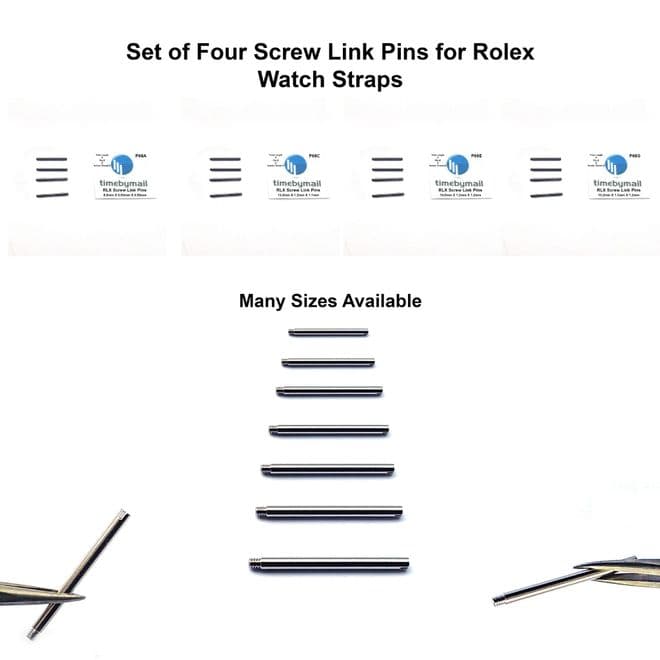

4X Screw Link PINS For ROLEX Watch Straps

Total Length X Pin Diameter X Screw End Diameter (in order of screw thickness)

Brand - For Rolex

Type of Pin - Screw Link Pin

P68A Size - 8.8mm X 0.95 X 0.80

P68B Size - 12.1mm X 1.3 X 1.0

P68C Size - 15mm X 1.2 X 1.1

P68D Size - 13.6mm X 1.7 X 1.1

P68E Size - 10mm X 1.2 X 1.2

P68F Size - 15.5mm X 1.2 X 1.2

P68G Size - 15.2mm X 1.5 X 1.2

P68H Size - 14.4mm X 1.6 X 1.2

P68J Size - 8.6mm X 1.7 X 1.2

P68K Size - 11mm X 1.7 X 1.2

P68L Size - 13mm X 1.7 X 1.2

P68M Size - 13.5mm X 1.8 X 1.2

P68N Size - 14mm X 1.7 X 1.2

P68P Size - 10mm X 1.4 X 1.4

P68Q Size - 15.9mm X 1.5 X 1.4

P68R Size - 17.3mm X 1.5 X 1.4

P68S Size - 19.4mm X 1.5 X 1.4

P68T Size - 14mm X 1.7 X 1.4

P68U Size - 15mm X 1.7 X 1.4

Pack Quantity - FOUR

Not sure what size you need - follow below instructions:

These pins will fit many models but you have to be careful of the size. There should be a number of screws on the strap that you can remove to get the measurement. On most straps there are usually 3 screws on each side of the clasp. remove one of these and try it in the hole where you have one missing. Measure the total length of the pin plus pin and screw end diameters.

In some cases you might find a shorter pin will do the job so the most important measurement is the screw and pin thickness.
